2015年6月30日星期二

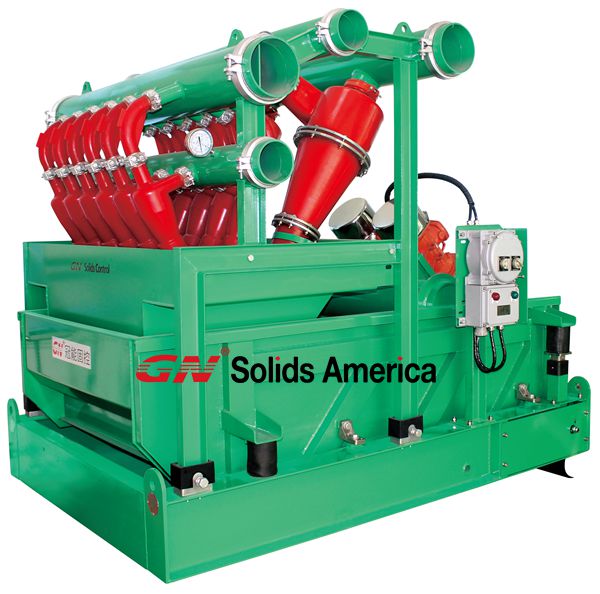

3 in 1 combo mud cleaner

Reference "3 in 1" combo in solids control machinery is called mud cleaner.  The combo is group of swirler in 10 inches called desander and 4 inches called deselter. Both desander s and desilters constructed together and installed on top of the shale shaker. Such set up combine the phase two and three of drill mud filtering and cleaning

Drilling mud cleaner is composed of a group of swirler, a set of detail screen shale shaker and shunt manifold. The top is a group of swirler, the underpart is the detail shale shaker. It is the second level separation equipment in the drilling mud solids control system.  This machinery set-up is ideal for operation-sensitive and limited space available environment.
 When the mud cleaner handles the weighted drilling fluid, the drilling fluid which is already handled enters into the drilling fluid system from the top of the desander swirlers. The drill cuttings, barite and a mud phase discharge from the bottom apex and go to the high- detail meshed shaker screen. The granularity of barite is overall 2~74um, it will pass-through to the drilling fluid system with the liquid phase and the drill-cuttings which are smaller than the screen mesh, the drill cuttings which are larger than the screen mesh will left remain on the screen surface. In this way,  3 in 1 mud cleaner cleans the drilling fluid, stabilizes the performance of drilling fluid and recover and recycle-use  the barite and the drilling fluid.
 Compared with the desander and desilter set up separately,  3 in 1 mud cleaner has the advantages of large handling capacity, fast processing speed, small structure, easy to operate and easy to maintain. Mud cleaner synthesize the advantages of shale shaker and swirlers called hydrocyclones, it can eliminate the harmful solid phase quickly, and improve the performance of drilling fluid, and satisfy the demand of the drilling rigs that req

Related Arciels:

2015年6月27日星期六

GN Drilling Liquids Recycle Module

GN Solids Control Company has joined into drilling liquids recycle modules for installation on Oil & Gas drilling for many years.

The drilling liquids module is made to accept flow capabilities as much as 1200GPM, degassing capacity of 1200 GPM, desanding unit capacity of 1000 GPM and desilting unit capacity of 1000 GPM, vertical cutting dryer capacity of 30~50 Ton/hour. An auger product is provided to transfer the drilling cuttings from shale shaker to vertical cuttings for more process. Two decanter centrifuges will also be installed on the tank following the mud cleaner models including high-speed decanter centrifuge and middle speed decanter centrifuge. Middle speed decanter centrifuge is used for recuperating barite and speed is required for getting rid of the fine solids within the drilling liquids. All connected skids, tanks and pumps needed for that system are incorporated in a tiny space.

Features and Specifications

GN Linear motion GNZS 594 shakers (618 GPM capacity) with Martin or Oli vibration motor

GN liquids divider unit guarantees equal flow across every shakers to be able to achieve high quality

GNZJ594E-2S12N Mud Cleaner

A couple of 10” Desander hydrocyclone (1000 GPM capacity) are mounted on top of GN 4 panel shale shaker

Twelve of 4” Desilter hydrocyclone (1000 GPM capacity) are mounted on top of GN 4 panel shale shaker

Vacuum liquids GNZCQ270A Degasser (1200 GPM capacity and self-absorption) maximum separating the harmful gas from drilling liquids

GN 8x6x11 centrifugal feed pumps (75 Hewlett packard, 1200 Revoltions per minute motors) transfer the liquids to mud cleaner unit

GNLW453 middle speed decanter centrifuge recoveries the barite to reuse within the active drilling liquids. GNLW363 high-speed decanter centrifuge is capable of getting rid of the fine and ultra-fine solids within the drilling liquids

Vertical cuttings dryer is definitely an environment friendly unit to recovery the drilling cuttings.


GN Solids Control can provide the more drilling liquids recycle solution for the project. If you have any inquiry, please contact GN sales.

2015年6月18日星期四

GN’s top quality equipment and best service

Located close to Beijing China Tower and Beijing International Airport, Hebei GN Solids Control has a convenient and fast place to attract foreign clients to go to GN factory and also to establish relationship. GN is the first API licensed manufacturer of solid control equipment and system in China, GN solids control offers quite a lot to state around the solids control system and equipment in gas and oil drilling area. Since established, GN has insisted on the insurance policy of striving top quality and service. With several years’ effort, GN has additionally been licensed through the CE by DNV. Each one of these certificates signifies that GN Solids Control is a company worth trust and reliance.


GN manufactures and supplies solids control system for gas and oil drilling in a variety of depth. Within the whole group of solids control system for gas and oil drilling, generally you will see four stage solids control equipment including shale shaker (first stage), desander (second stage), desilter (third stage), decanter centrifuge (fourth stage). Alternatively, the desander and desilter could be changed through the mud cleaner using the mixture of desander cyclones and desilter cyclone. And when the drilling is simply too deep, two teams of decanter centrifuge is going to be used. The main one is medium speed, and yet another is high-speed decanter centrifuge. Beside solids control system, GN also supplies mud system for a number of types of drilling, and drilling waste management system for drilling cuttings.

Besides top quality product, GN also supplies considerate service:

Pre-Sales: Free working as a consultant and style based on client’s needs, provide optimal proposal for individual clients.

Post Sales: Guarantee & Commissioning: GN Provide 12 months guarantee and free service for brand spanking new commissioning of system and training up client’s engineer.


Spares: GN also have spares obtainable in stock to make sure fast delivery.

2015年6月12日星期五

GNLW223 Centrifuge in Chile available

GN solids control manufactured GNLW223 dewatering centrifuge is broadly supplied for mineral exploration industry. Also our unique designed solids removal unit is brought to solve the issue of drilling cuttings dewatering and recycling water and fewer cost. We now have 1 unit of GNLW223 small centrifuge with 3800rpm high-speed available in Chile available, if you're active in the gemstone core drilling and pressurized to minus the water consumption and fewer the price for drilling, please contact GN solids control for quotation.


Most companies in mining exploration industry haven't aware the significance to make use of the dewatering unit, or at this time the environment regulation within their drilling area isn't so obvious and strict, so many of them don't use the solids separation unit for core drilling. We thought the benefits to utilize a solids removal unit is going to take more focus on soon since the government already recognized the required to problem the brand new regulation.

The specs of GN filled dewatering centrifuge are as below:

1 bowl diameter: 9inch

2 bowl length: 26inch

3 normal flow rates: 150L/min

4 bowl speed: as much as 4500rpm, VFD available.

5 drive type: electric drive, hydraulic drive

6 Max G pressure: 3077

7 scroll protection: tungsten carbide

8 bowl material: stainless 316L

This decanter centrifuge in stock is motor unit drive, but we make it without motor and user interface, so that you can install hydraulic drive onto it for electricity limit area.


Also we've 1 unit of these centrifuge in Montreal, Canada available, and 1 unit of GNLW223 decanter centrifuge in GN Solids America Houston warehouse for show, along with the centrifugal feeding pump 4 Hp. You will get these right now. Please contact GN solids America sales for that cost and more information.
Related Arciels:

2015年6月5日星期五

2014 GN Projects for Asia Market: Mud Recycling System for HDD and Tunneling

As the top manufacturer in China of solids control equipment and system for gas and oil drilling, besides solids control system, GN solids control also focused on mud recycling system for horizontal directional drilling, and tunneling. Not the same as solids control system, mud recycling system doesn't requires to split up the ultra-fine solids out, so normally you will see 2 or 3 stage equipment: shale shaker, desander, desilter (sometimes, we make use of a double deck underflow shaker using the desander or desilter on top in order to save cost and space sometimes the mud cleaner is going to be adopted in order to save cost and space using the mixture of desander and desilter)

This season, GN shipped one set mud system for any Hong Kong customer, this technique incorporated two teams of GN 4 panel shale shaker some large capacity mud cleaner one group of poor boy degasser, some vacuum degasser, and some conveyor, as well as mud tanks. Click on the below link for more information.

GN also shipped 500gpm mud system for trenchless drilling project in Thailand two group of mud recycling system to India for horizontal directional drilling with Vermeer rigs. The first is 500 GPM with shale shaker and desilter the first is 350gpm with shale shaker and desilter. GN could supply various treating capacity mud recycling systems for horizontal directional drilling drilling.


More to the point, GN designed and manufactured an entire group of TBM mud system with dewatering unit for any Singapore customer. This project needs a large treating capacity; therefore the greatest decanter centrifuge sitting 80 cubic meters each hour is adopted. And also the dewatering unit is required to make small solids aggregated into large ones after which to become processed through the decanter. GN is experienced in solids control and mud system.
